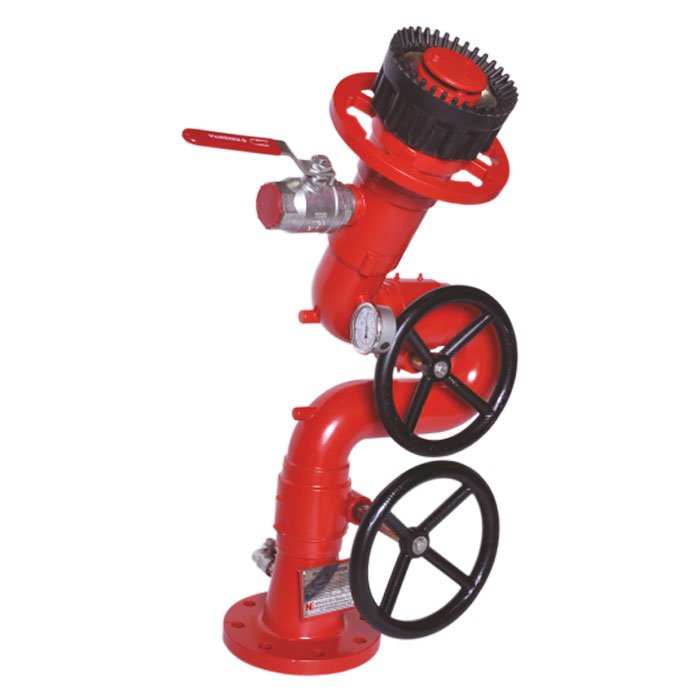

Fixed Flow Monitors – UL Listed

Description

UL Listed Monitor and UL Listed Foam Induction Mechanism under UL Standard – 162
Designed for Fixed Installations where Monitors are required with High Flow Rates and Long Range Straight Streams.
UL Listed Flanged Inlet Monitors with UL Listed Fixed Flow and Variable Flow Nozzles
Made out of Stainless Steel, these monitors are fit for optimum performance where environment is highly corrosive
Stainless Steel Material Grade available are SS 304, SS 316 and SS 316L
Metering Valve on the Foam Inducting device for Corresponding Flow and Precise Induction
Non-Aspirating Aqua Foam Nozzle is very much compatible for Jet-Ratio controller Pump without any modification.

ITEM / PART	MATERIAL OF CONSTRUCTION
Nozzle	Stainless Steel-304 / 316 / 316L
Monitor Body	Stainless Steel-304 / 316 / 316L
Flange (150 LBS, ANSI B 16.5 rating size 150 mm)	Stainless Steel-304 / 316 / 316L
Swivel Joints	Stainless Steel-304 / 316 / 316L
Gear	Stainless Steel-304 / 316 / 316L
Spindle for worm	Stainless Steel-304 / 316 / 316L
Hand-wheels for Nozzle, horizontal / vertical movement.	Stainless Steel-304 / 316 / 316L
Pick-up tube (3mtr length)	PVC reinforced with high tensile steel wire helix as per ASTM D1785 sch.80.
Drain Valve	Stainless Steel-304 / 316 / 316L
Foam strainer (removable type)	Stainless Steel-304 / 316 / 316L
Foam Inductor	Stainless Steel-304 / 316 / 316L
Foam Inductor Coupling (63mm)	Stainless Steel-304 / 316 / 316L
Nuts/bolts at monitor	Stainless Steel-304 / 316 / 316L

Monitor Barrel Size	Monitor Nozzle Flow Rate @ 7 KG / CM2	Foam Induction	Approval
75 MM	500 GPM	SELF INDUCTING NOZZLE	UL Listed
75 MM	750 GPM	SELF INDUCTING NOZZLE	UL Listed
100 MM	1000 GPM	SELF INDUCTING NOZZLE OR JRCP	UL Listed
