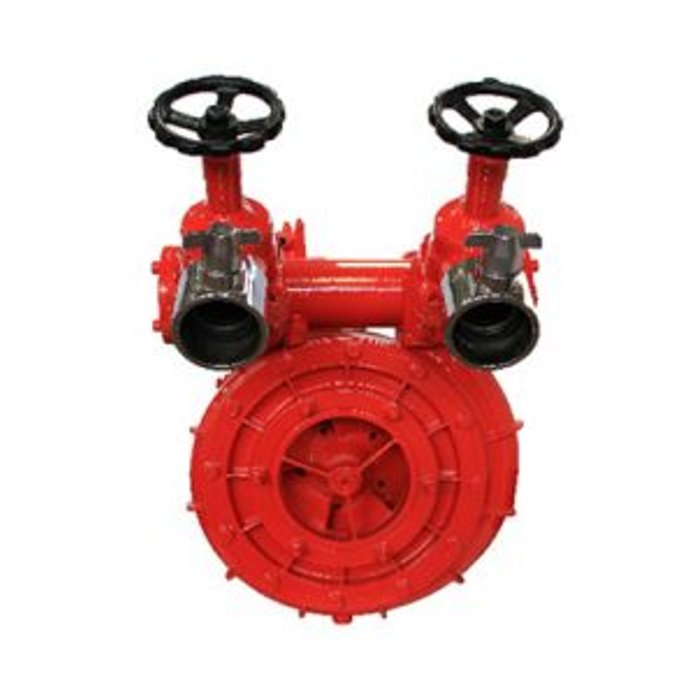

FIRE VEHICLE PUMPS – MULTI PRESSURE SERIES

FIRE VEHICLE PUMPS – MULTI PRESSURE SERIES
,

FIRE VEHICLE PUMPS – MULTI PRESSURE SERIES

Description

  • Meets the requirements as per BIS Standards
  • Compact and Low Maintenance Design
  • Available with a choice of Primers – Manual or Automatic
  • Perfect Interchangeability of pump spares
  • Available with Stainless Steel or Gunmetal Constructions
  • CE Certified to EN-1028 – 1 & 2 & other Harmonious Standards
  • Fully Compliant to NFPA 1901
Description NKLP 2000 NKLP 3000 NKLP 4000 NKLP 6000
Rated Performance (Low Pressure) 400 LPM @ 40 Bar 400 LPM @ 40 Bar 400 LPM @ 40 Barr 6500 LPM @ 8.5 Bar
Maximum Shaft Speed 3600 RPM 3600 RPM 3600 RPM 3600 RPM
Maximum Suction Lift 8 meters 8 meters 8 meters 8 meters
Suction Inlet 100 mm 140 mm 140 mm 200 mm
Pump Body Gunmetal / Stainless Steel / Aluminium
Impeller Gunmetal / Stainless Steel
Impeller Shaft Stainless Steel
Wear Rings Bronze / Stainless Steel
Shaft Seal Maintenance Free – Mechanical Seal
Intake 140 mm – 20 mm Round Threaded
Safety Valves Thermal Relief Valve,
Pressure Relief Valve
Discharge Outlets 4 Way Manifold Option (Normal Pressure)
25 mm Threaded Outlet (HP Side)
