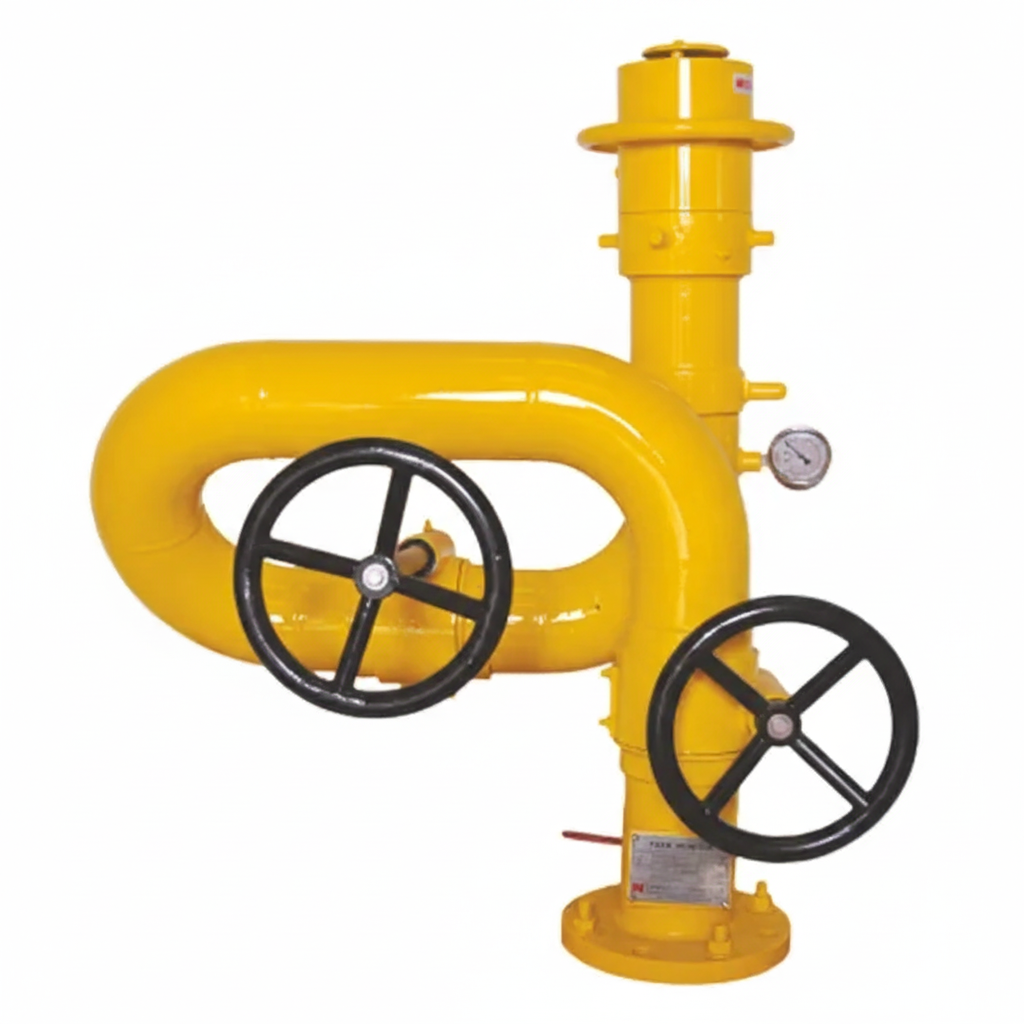

Adjustable Flow Monitors

Adjustable Flow Monitors – UL Listed

Description

UL Listed Monitor and UL Listed Foam Induction Mechanism under UL Standard – 162
Designed for Fixed Installations where Monitors are required with High Flow Rates and Long Range Straight Streams.
UL Listed Flanged Inlet Monitors with UL Listed Fixed Flow and Variable Flow Nozzles
Made out of Stainless Steel, these monitors are fit for optimum performance where environment is highly corrosive
Stainless Steel Material Grade available are SS 304, SS 316 and SS 316L
Metering Valve on the Foam Inducting device for Corresponding Flow and Precise Induction
Metering Valve on the Foam Inducting device for Corresponding Flow and Precise Induction

ITEM / PART	MATERIAL OF CONSTRUCTION
Nozzle	Stainless Steel-304 / 316 / 316L
Monitor Body	Stainless Steel-304 / 316 / 316L
Flange (150 LBS, ANSI B 16.5 rating size 150 mm)	Stainless Steel-304 / 316 / 316L
Swivel Joints	Stainless Steel-304 / 316 / 316L
Gear	Stainless Steel-304 / 316 / 316L
Spindle for worm	Stainless Steel-304 / 316 / 316L
Hand-wheels for Nozzle, horizontal / vertical movement.	Stainless Steel-304 / 316 / 316L
Pick-up tube (3mtr length)	PVC reinforced with high tensile steel wire helix as per ASTM D1785 sch.80.
Drain Valve	Stainless Steel-304 / 316 / 316L
Foam strainer (removable type)	Stainless Steel-304 / 316 / 316L
Foam Inductor	Stainless Steel-304 / 316 / 316L
Foam Inductor Coupling (63mm)	Stainless Steel-304 / 316 / 316L
Nuts/bolts at monitor	Stainless Steel-304 / 316 / 316L

Monitor Barrel Size	Monitor Nozzle Flow Rate @ 7 KG / CM2	Foam Induction	Approval
75 MM	500-750 GPM Variable Flow	SELF INDUCTING NOZZLE OR JRCP	UL Listed
100 MM	500-750-1000 GPM Variable Flow	SELF INDUCTING NOZZLE OR JRCP	UL Listed
150 MM	1000-1500-2000 GPM Variable Flow	SELF INDUCTING NOZZLE OR JRCP	UL Listed
200 MM	2000-3000-4000 GPM Variable Flow	JRCP	UL Listed
